Calibrating Krohne Optiflux Electromagnetic Sensors for Chemical Lines
Quick Answer: Calibrating a Krohne Optiflux electromagnetic sensor on a chemical line starts with a zero point check on a full pipe at zero flow. Then verify the span against a known volume or a master meter. Silver Instruments can bench calibrate the sensor or supply a replacement from DN15 to DN300.
Why Chemical Line Calibration Is Different
Chemical lines rarely fail at the electronics first. The sensor liner and electrodes see the real stress. Acid dosing at 60 °C can etch a PFA liner edge. Caustic service above 20 percent concentration can build a thin film on electrodes. Solvent batches can change conductivity below 5 µS/cm and create unstable readings.
Most engineers skip this part: they trust the factory calibration and ignore the process conditions. We have seen this on customer sites many times. A paint manufacturer in Vietnam ran a DN25 Optiflux on titanium dioxide slurry. The meter drifted after six months because the electrode surface was coated. A field calibration with a master meter brought the error from 2.8 percent back under 0.5 percent.
Required Tools and Site Conditions
You need a stable flow source, a calibrated reference meter, a HART communicator, and clean water or process fluid. For hazardous chemical lines in ATEX Zone 1, use an intrinsically safe HART modem. Do not calibrate while the line is draining or half full. The Optiflux converter reads empty pipe as a flow offset if the electrode circuit is open.
Record these values before any adjustment: conductivity in µS/cm, fluid temperature in °C, pipe size DN, liner material, electrode type, and current 4-20 mA output. A DN15 to DN50 chemical dosing line usually runs at 0.3 to 2 m/s. A full bore magmeter needs at least 5 µS/cm for stable readings. Demineralized water or toluene may need a special electrode circuit.
Zero Point Check on a Full Pipe
Close the downstream isolation valve and keep the pipe full. Wait until the fluid is completely still. Check the converter display and the HART PV value. A healthy sensor on a clean chemical line reads zero within 0.1 percent of full scale. For a DN80 sensor with 0.5 percent accuracy, a zero offset above 0.3 percent indicates coating or grounding issues.
Do not set the zero point on an empty pipe. That masks a real electrode problem. If the zero value jumps around, check the grounding rings and the reference electrode. In plastic piping, remove any paint from the grounding surface. This is a common issue on PVC and FRP chemical drains.
Gain and Span Verification
Run the process fluid through the meter and compare the Optiflux volume against a calibrated master meter or a weigh tank. Start at 25 percent, 50 percent, and 90 percent of the normal flow range. In chemical batching, a weigh tank is often more practical than a master meter because viscosity changes do not affect the mass calculation.
Adjust the gain only after the zero point is stable. On a DN25 dosing line with 4-20 mA HART output, a 1 percent span error at 500 kg/h means a 5 kg/h offset. That is enough to ruin a reactor batch. After adjustment, verify the current output at 4 mA and 20 mA. Check the HART PV and the display totalizer agree.
Common Errors on Acid, Caustic, and Solvent Lines
Here is the thing: chemical lines fail at the electrodes before the electronics fail. Acid lines often have gas bubbles from dosing pulses. The magmeter measures the liquid only. Bubbles cause a positive flow error. Install a back pressure valve aft
Solvent lines can fall below 5 µS/cm. The reading becomes unstable even if the sensor is healthy. In that case, select a high impedance converter or switch to a Coriolis mass meter. A customer in Thailand asked us about a toluene batch line with a DN40 Optiflux. The conductivity was 1.2 µS/cm. The flow signal was noisy. We supplied a Coriolis mass meter with PT100 temperature compensation and the batching loop became stable.
When Replacing Beats Recalibration
Recalibration is cheap only when the liner and electrodes are intact. If a PFA liner shows cracks around the flange face, replace the sensor. If the electrode tip is worn or coated after cleaning, replace the sensor. A new magmeter with the same flange standard is often faster than re-lining a damaged chemical sensor.

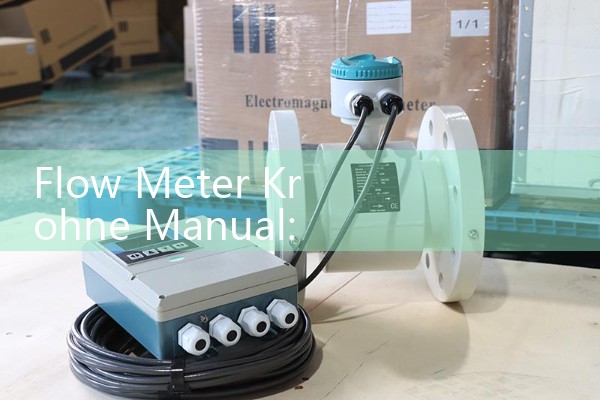

Silver Automation Instruments supplies electromagnetic flow meters from DN15 to DN300 with PTFE, PFA, or hard rubber liners. We also keep spare grounding rings and electrodes for common chemical line sizes. Tell us the pipe size DN, flange standard, liner material, flow range, pressure in bar, and temperature in °C. We will recommend a drop-in replacement or a bench calibration plan.
Calibration Support from Silver Instruments
We calibrate electromagnetic sensors for water, acid, caustic, slurry, and solvent service. Our engineers can check your Krohne Optiflux converter settings by remote video or on site in Southeast Asia and the Middle East. Send the sensor to our Nanjing workshop for a full flow bench test if the line can be shut down.
Contact Silver Instruments at Tel +86-25-68650347 or WhatsApp +86-25-52155837. WeChat users can reach us at +86 15365082610. Include your pressure in bar, temperature in °C, pipe size in DN, and normal flow range. We will answer with a calibration procedure and a quote within 24 hours. Product data is available at flow-meter.com.au.
FAQ on Optiflux Calibration for Chemical Lines
Q: How often should a Krohne Optiflux sensor be calibrated on chemical lines?
A: Every 12 months for stable acid or caustic service. Calibrate every 6 months for slurry, polymer, or high temperature lines above 120 °C. Always calibrate after a liner change or a suspected coating event.
Q: Can I calibrate an Optiflux on site without removing the sensor?
A: Yes. A zero point check and a master meter comparison can be done on site. For full traceability, remove the sensor and run a bench calibration at Silver Instruments in Nanjing.
Q: What conductivity does an electromagnetic flow meter need?
A: Standard Optiflux sensors need process fluid above 5 µS/cm. Demineralized water and many solvents fall below this. Use a high impedance converter or a Coriolis mass meter instead.
Q: Why does the reading drift on a chemical dosing line?
A: Coating on the electrodes is the usual cause. Gas bubbles, grounding problems, and low conductivity also create drift. Check zero point first. Do not adjust span until the zero point is stable.
Q: Does Silver Instruments sell a replacement for a Krohne Optiflux?
A: Yes. We supply electromagnetic flow meters with matching DN size, flange standards, liner materials, and 4-20 mA HART or pulse outputs. Send your current sensor tag data and process details for a fast quote.
