How to Select Flow Meter: Sizing Guidelines Based on Viscosity, Temperature, and Pressure Metrics
Quick Answer: Start with three live process numbers: viscosity in cP, temperature in °C, and line pressure in bar. Match those numbers to the flow meter technology before you check pipe size. Silver Instruments sizes Coriolis, oval gear, electromagnetic, ultrasonic, vortex, and thermal mass meters based on these three metrics first because they decide accuracy, pressure loss, and service life.
Most engineers start with DN or flow range. In practice that causes rework. A 50 mm line can carry 2 cP water or 500 cP heavy oil. The meter behaves differently. Silver Automation Instruments has seen this on customer sites in Vietnam, Indonesia, Mexico, and Nigeria.
Viscosity changes the velocity profile and the meter type. For water and chemicals under 5 cP an electromagnetic flow meter works well. For diesel, lube oil, or syrup above 20 cP an oval gear flow meter or Coriolis mass flow meter handles the job better. If you put a turbine meter on 300 cP oil the readings shift. If you put an electromagnetic meter on oil nothing useful happens because oil is not conductive.
Viscosity Sizing Rules That Save Time
For liquids below 5 cP consider a full bore electromagnetic flow meter. Minimum conductivity is usually 5 µS/cm. This suits clean water, wastewater, acids, caustic, and many water based chemicals. For liquids from 5 to 100 cP check if the liquid is conductive. If yes an electromagnetic meter still works. If no use an oval gear meter for reliable batch totals. For liquids above 100 cP use a positive displacement meter or a Coriolis mass flow meter. Oval gear meters measure volume directly and handle diesel, fuel oil, molasses, and resin well.
Here is the thing: high viscosity does not only mean thick liquid. It also means higher pressure drop across the meter. A narrow flow tube or small internal clearances can add several bar of loss. Silver Instruments sizes oval gear meters with lower pressure drop chambers for high viscosity applications. For example a paint manufacturer in Southeast Asia replaced an undersized turbine meter on a 200 cP resin line with an oval gear meter. The plant cut pressure loss from 1.8 bar to 0.6 bar and the batch total became stable.
Temperature Metrics and Meter Limits
Temperature decides liner material, sensor type, and whether you need a remote transmitter. A standard electromagnetic flow meter with PTFE liner handles 120 °C. For 150 °C steam condensate use a higher temperature liner or a vortex meter. A standard Coriolis meter can run at 150 °C to 200 °C. For cryogenic LNG or liquid oxygen you need a special sensor design. Thermal mass flow meters suit gas temperature from -40 °C to 200 °C depending on probe material.
Do not ignore ambient temperature. In the Middle East or Northern Australia a panel mounted transmitter may see 55 °C inside a cabinet. Silver Instruments often supplies remote mounted transmitters for these sites. In one wastewater plant in Peru the local integrator installed compact electromagnetic meters in direct sun. The display failed within eight months. A remote transmitter solved the issue.
Pressure Metrics and Line Conditions
Pressure determines flange rating, safety limits, and meter body strength. For a standard electromagnetic flow meter the liner and electrode can handle PN16 or PN40. For high pressure gas flow a vortex meter with 150 lb or 300 lb flanges may work. For 100 bar hydraulic oil a Coriolis meter or a high pressure oval gear meter with stainless steel body is a better match.
You also need to check pressure drop across the meter. In gas lines a thermal mass flow meter has very low pressure drop. In liquid lines a full bore electromagnetic meter has almost no obstruction. An orifice plate or small positive displacement meter can create more loss. For a 40 mm diesel line at 2000 kg/h and 6 bar a standard oval gear meter may add 0.4 bar.

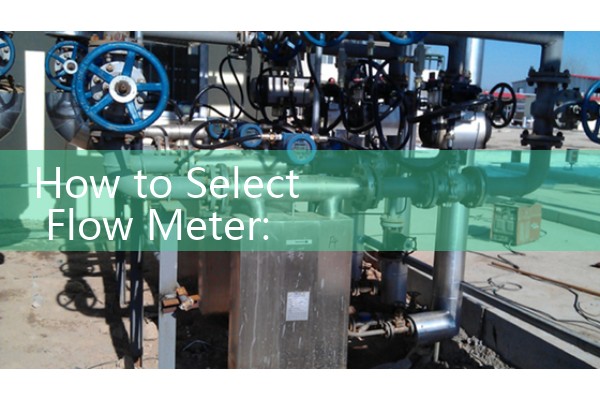

_600x400.jpg)
Flow Meter Type Selection by Fluid and Metric
Coriolis mass flow meters work for almost any liquid or gas but cost more for large lines. They give direct mass flow, density, and temperature. They handle viscous chemicals, fuel oil, and high pressure gases. For a chemical blender in Saudi Arabia a Coriolis meter measured two liquid additives at 120 cP and 12 bar with mass accuracy of ±0.2 percent. For large water lines above DN300 an electromagnetic flow meter costs less and still delivers ±0.5 percent of reading.
Ultrasonic flow meters fit large pipes and can be clamp on. They work for clean water, seawater, and district cooling. They do not handle high viscosity well unless you use a wetted transducer design. Vortex meters suit steam, compressed air, and some gases. They are less suitable for thick oil or low flow because the vortex shedding drops out at low Reynolds number. Oval gear meters suit diesel, biodiesel, lube oil, and food grade oils. Thermal mass meters suit compressed air, biogas, and natural gas flow measurement.
Real Sizing Example from a Customer Inquiry
A customer in Vietnam asked us for a seawater flow meter for a desalination plant. Line size was DN150, pressure 10 bar, temperature 35 °C, conductivity 52000 µS/cm, flow range 80 to 400 m³/h. Silver Instruments supplied a remote mount electromagnetic flow meter with rubber liner and titanium electrodes. Total cost was lower than a Coriolis meter and the accuracy was stable because seawater is conductive. This meter will not work for deionized water because conductivity drops below 5 µS/cm. That application needs a different meter.
FAQ
Q: What flow meter is best for high viscosity oil?
A: For diesel or lube oil above 20 cP use an oval gear flow meter or a Coriolis mass flow meter. Oval gear meters handle 1 to 1000 cP well and give strong batch totals. Coriolis meters add direct mass flow and density.
Q: Can I use an electromagnetic flow meter for diesel?
A: No. Diesel is not conductive. Electromagnetic flow meters need a minimum liquid conductivity of about 5 µS/cm. Use an oval gear flow meter for diesel.
Q: How does temperature affect flow meter selection?
A: High temperature can damage liners and electronics. Check the liner material and transmitter mounting. For 150 °C liquids use PTFE liner electromagnetic meters or a Coriolis meter with remote transmitter. For gases above 200 °C a vortex meter may suit better.
Q: What information do I need to send for a quote?
A: Send fluid name, viscosity in cP, conductivity if water based, flow range, operating pressure in bar, temperature in °C, pipe size in DN, and flange standard. Silver Instruments checks the meter type, pressure drop, and liner compatibility.
Q: Which flow meter has the lowest pressure drop?
A: Full bore electromagnetic meters and clamp on ultrasonic meters have almost no pressure loss. Thermal mass meters also have low pressure drop in gas lines. Oval gear and small Coriolis meters can add more loss when viscosity is high.
