Ethanol Flow Meter Sizing: Corrosion-Resistant Explosion-Proof Meters for Biofuels
Quick Answer: Here is the thing. For ethanol and biofuel service, use a Coriolis mass flow meter or a stainless steel oval gear meter with PTFE or FKM seals. Size the meter by mass flow rate and specify IECEx or ATEX explosion-proof certification for any ethanol vapor zone.
Why Ethanol Flow Meter Sizing Is Different
Ethanol is a light hydrocarbon solvent. It has a density near 789 kg/m3 at 20 °C and viscosity around 1.1 cP. It is also a polar solvent. It can swell standard rubber seals and damage some plastic parts. The flow range in a biofuel plant changes a lot. A small dosing line may run 30 L/h while a loading skid runs 40,000 kg/h. You cannot use the same meter for both.
In practice, most engineers skip this part. They size by pipe diameter and then find the meter does not cover the actual flow range. We have seen this on customer sites in Vietnam and Thailand. A 50 mm magmeter was installed on an ethanol line because the pipe was DN50. The reading was unstable. Ethanol has very low conductivity. A magmeter needs a conductive liquid. This simple mistake delayed a batch blending project by two weeks.
Corrosion-Resistant Materials for Ethanol Service
Because ethanol is a solvent, wetted parts and seals matter more than in water service. For ethanol and hydrous ethanol, use 316L stainless steel as a minimum. Carbon steel can corrode if water is present. Aluminum is not recommended for fuel-grade ethanol because of corrosion risk and potential particles in the stream. Hastelloy C is available for high purity or acid-containing streams but it is often not required.
Seals are a common failure point. Specify PTFE or FKM for ethanol. Do not use standard EPDM or Buna N unless the supplier has verified compatibility with your exact ethanol water blend. A bioethanol plant in the Philippines replaced four flow meters in one year because the EPDM seals swelled and changed the meter pulse output. That is a costly lesson.
Explosion-Proof Certification for Biofuel Areas
Ethanol vapor can form an explosive mixture with air. A flow meter installed in a blending area, storage tank dike, or loading skid needs hazardous area certification. In most export markets, that means IECEx or ATEX. Some Latin American projects also accept UL or INMETRO. We normally supply Ex d IIC T4 enclosures for Coriolis meters and Ex ia circuits for oval gear pulse outputs.
Do not assume a standard IP65 meter is enough. An IP65 housing keeps out dust and water jets. It does not contain an explosion. Specifying the wrong certification causes customs delays in the Middle East and rejected inspections in Brazil.
How to Size an Ethanol Flow Meter
Step one is to calculate minimum and maximum flow in kg/h or L/h. For a DN25 pipe, a normal ethanol flow range might be 300 kg/h to 4,000 kg/h. That range suits a DN25 Coriolis meter from Silver Automation Instruments. If your minimum flow is lower, use a smaller meter or an oval gear meter for low flow dosing.
Step two is to check viscosity and density. Anhydrous ethanol is about 0.45 cP at 40 °C. Hydrous ethanol is slightly higher. Coriolis meters measure mass flow directly and are not affected much by viscosity changes. Oval gear meters also handle low viscosity but need fine clearance control. Vortex meters can work on large liquid lines above 5 m/s, but low flow signals drop off.
Step three is to match the output and certification. Most biofuel customers request 4-20 mA HART for flow rate and to
Recommended Meter Types for Ethanol and Biofuels

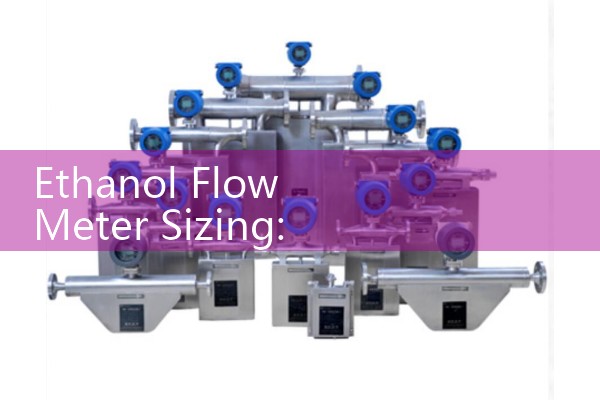

For custody transfer, fuel blending, and density monitoring, the Silver Instruments Coriolis mass flow meter is the first choice. It measures mass flow, density, and temperature in one device. Typical accuracy is 0.1 percent of rate for liquids. A DN15 Coriolis meter covers low flow dosing. A DN50 Coriolis meter covers 5,000 kg/h to 25,000 kg/h on a loading skid. A DN80 covers higher flows.
For low flow and small batch operations, a stainless steel oval gear flow meter is more cost-effective. A DN10 oval gear meter with PTFE gears and 316L housing can measure 0.5 L/h to 20 L/h of ethanol additive. For a 40 mm blending line, a DN40 oval gear meter with 4-20 mA HART can handle 800 L/h to 8,000 L/h.
Do not use electromagnetic flow meters on ethanol. Ethanol conductivity is far below the typical 5 µS/cm threshold. Do not use thermal mass meters on liquid ethanol. They are designed for gas. Ultrasonic clamp-on meters can work on full pipes, but installation needs straight run and no air bubbles.
Silver Instruments Ethanol Flow Meter Options
Silver Instruments supplies ethanol flow meters from DN10 to DN200. Wetted parts include 316L stainless steel, PTFE, and FKM. Pressure ratings go up to 100 bar for oval gear meters and 250 bar for Coriolis meters. Process temperature range is -40 °C to 150 °C for most ethanol applications. Accuracy levels vary by product type.
All hazardous area meters can be supplied with IECEx or ATEX certificates. The standard output is 4-20 mA HART. Pulse and Modbus RTU are optional. For a typical anhydrous ethanol loading skid, we recommend a DN50 Coriolis meter with 316L wetted parts, FKM seals, Ex d IIC T4 housing, and 4-20 mA HART output. This configuration handles 5,000 kg/h to 25,000 kg/h and provides density data for product quality checks.
FAQ: Ethanol Flow Meter Sizing and Selection
What size flow meter do I need for a DN50 ethanol line?
For a DN50 pipe, a DN50 Coriolis meter works well from 5,000 kg/h to 25,000 kg/h. If minimum flow is below 500 kg/h, use a DN25 meter or a DN40 oval gear meter for better low flow accuracy.
Can I use an electromagnetic flow meter for ethanol?
No. Ethanol has very low conductivity. Most magmeters need at least 5 µS/cm. Ethanol is below 1 µS/cm. Use a Coriolis or oval gear meter.
Do ethanol flow meters need explosion-proof certification?
Yes if the meter is in a hazardous area. Ethanol vapor is flammable. Specify IECEx or ATEX. Ex d or Ex ia are common. For Zone 1, use Ex d IIC T4 or better.
What seal material is safe for ethanol?
PTFE or FKM are safe for most ethanol and hydrous ethanol. Do not use EPDM or Buna N unless your supplier confirms the exact blend.
How do I get a quote from Silver Instruments?
Send your flow range in kg/h or L/h, pressure in bar, temperature in degrees Celsius, pipe size DN, and hazardous area classification. Contact Silver Automation Instruments at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, WeChat: +86 15365082610.
Need a fast quote? Send your pressure in bar, temperature in degrees Celsius, pipe size DN, and flow range in kg/h or L/h. Contact Silver Automation Instruments at Tel: +86-25-68650347 or WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Product data sheets are at flow-meter.com.au.
